In industrial surface finishing, masking precision directly governs electroplating quality, dimensional tolerances, and operational yields. PVC electroplating protection tape functions as a sacrificial dielectric and chemical barrier designed to isolate specific substrate zones from electrolytic baths during processes such as hard chrome plating, nickel sulfamate bath immersion, anodizing, and PCB gold finger masking. Achieving zero-defect execution requires an engineering-level understanding of backing polymer behavior, adhesive surface chemistry, and application dynamics.

Engineering Principles: Why PVC Film and Rubber Adhesives Excel in Electroplating

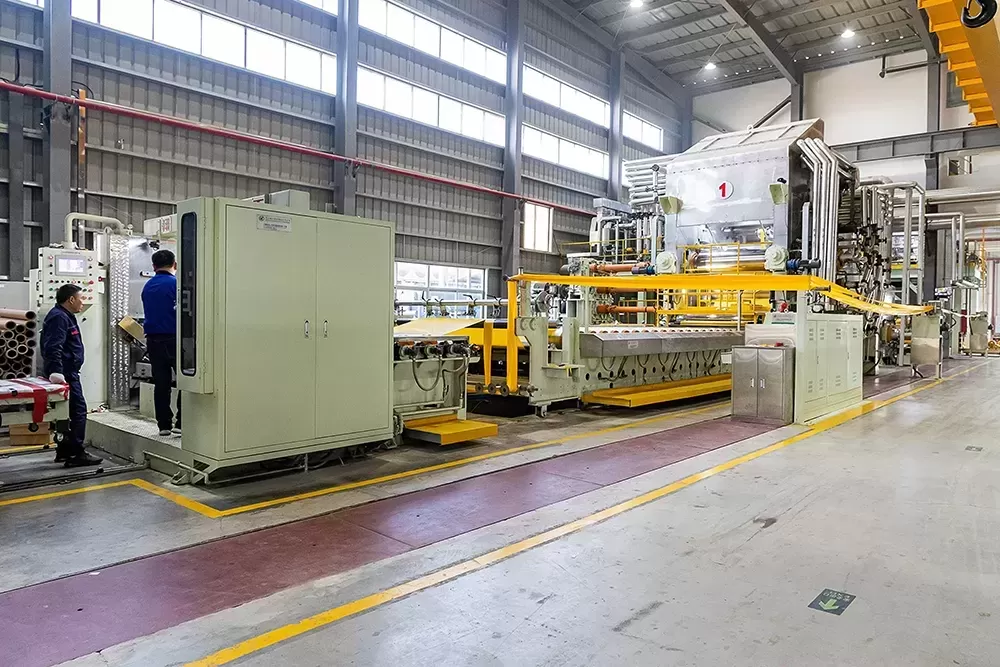

The performance of PVC electroplating protection tape relies on two core components working in tandem: a plasticized polyvinyl chloride (PVC) backing and a formulated rubber-based pressure-sensitive adhesive (PSA).

Chemical Resistance Properties in Acidic and Alkaline Baths

Unprotected metals exposed to aggressive plating chemistry experience rapid localized attack or unwanted metal deposition. Soft PVC film features high chemical inertness across the complete pH scale (pH 0 to 14). It resists aggressive oxidation from chromic acid solutions, nitric acid pickles, cyanic copper baths, and sulfuric acid anodizing electrolytes.

The backing material—typically engineered at a thickness of 6.5 to 6.8 mils (0.165 mm to 0.173 mm)—acts as a non-porous vapor and liquid barrier. The accompanying non-corrosive, cross-linked rubber adhesive is formulated to resist breakdown, preventing plasticizer leaching or chemical attack from bath surfactants. This prevents electrolyte bath contamination, preserving chemical balance and plating bath longevity.

Mechanical Dynamics: Conformability, Elongation, and Stress Relaxation

Industrial components frequently feature complex geometries, including stepped shafts, internal threads, keyways, and sharp radii. Rigid masking films fail along these contours due to tenting and air entrapment.

• Conformability: Soft PVC exhibits high flexibility, allowing it to stretch and mold around irregular contours without tearing.

• Elongation at Break: With an elongation capacity of approximately 100% and tensile strength ranging between 16 and 20 lbs/inch, the tape withstands mechanical stress during manual or automated application.

• Elastic Memory Risks: Over-stretching PVC during application creates internal elastic strain. When exposed to elevated bath temperatures (up to 80°C–90°C / 176°F–194°F), the film attempts to contract to its original state. This elastic rebound induces shear stress along the tape borders, leading to edge lifting and subsequent electrolyte seepage. Proper application requires applying the tape under controlled tension.

Comparing Electroplating Tapes: Soft PVC vs. PET vs. Polyimide

Selecting the optimal masking material depends on operating temperature, chemical exposure, geometry, and cost constraints. Below is a comparative material benchmark:

While PET and Polyimide films excel in high-temperature environments, Youyi soft PVC electroplating protection tape remains the industry standard for immersion plating at temperatures below 90°C due to its superior surface conformity, cost efficiency, and total chemical barrier protection.

Critical Substrate Preparation and Surface Chemistry Optimization

Adhesive failure during electroplating is rarely caused by product defects; it typically stems from improper substrate cleaning. Organic oils, oxides, and cleaning residues lower substrate surface energy, preventing complete adhesive wet-out.

• Immersion Soak Degreasing: Removes heavy machining oils, coolants, and organic lubricants using alkaline cleaning agents.

• Electrolytic Cleaning: Utilizes cathodic or anodic gas generation (hydrogen/oxygen scrubbing) at the metal surface to dislodge micro-smut and embedded particulate matter.

• Acid Pickling & Activation: Dissolves native surface oxides and rust using dilute hydrochloric, sulfuric, or hydrofluoric acid formulations.

• Rinsing & Forced-Air Drying: Trapped moisture under tape edges causes thermal vapor expansion inside warm plating baths, blowing off the tape boundary. Use clean, oil-free compressed air and lint-free microfiber wipes.

• Surface Energy Verification: Perform a water-break test or dyne pen test prior to masking. A continuous, unbroken water film indicates a surface ready for maximum pressure-sensitive adhesive bonding.

Protocol for Applying PVC Electroplating Protection Tape

Consistent execution during tape application eliminates fluid creeping, edge undercut, and deposit bleeding.

Mitigating Edge Undercutting and Solution Seepage

Solution seepage occurs when plating fluids creep under tape edges via capillary action or electro-osmosis. Prevent edge undercutting using the following protocol:

• Controlled Tension Application: Unroll and position the tape smoothly. Do not pull the tape to its maximum stretch limit over flat regions to prevent thermal shrinkage in heated baths.

• Mechanical Burnishing: Apply firm pressure along all border edges using a hard-rubber squeegee or roller (30–40 psi contact pressure). This drives adhesive wet-out, forcing out air pockets and creating a complete fluid barrier.

• Border Overlap Margins: Maintain a minimum 10 mm to 15 mm tape overlap margin beyond the critical non-plating threshold to compensate for hydrodynamic bath flow and rack agitation.

• Die-Cut Masking Utilization: For complex apertures or repetitive circular geometries, specify precision die-cut PVC tape shapes to eliminate manual blade scoring marks on critical metal substrates.

Thermal and Physical Stress Management During Deposition

Once submerged, masked components experience fluid turbulence from bath agitation systems (air sparging or mechanical pumping) alongside thermal cycles. Ensure the tape dwell-time allows the pressure-sensitive rubber adhesive to reach full peel strength (typically 20 to 30 minutes post-application) before lowering racks into the chemical tanks.

Demasking and Post-Plating Inspection Metrics

The post-plating workflow requires disciplined stripping procedures to prevent surface contamination or deposit damage.

• Thermal Window Demasking: Strip the PVC tape while the component retains slight residual heat (30°C to 40°C) or at ambient temperature. Peeling cold, embrittled tape increases the risk of adhesive shearing.

• Peel Angle and Speed: Peel the tape back continuously at a 45-degree angle relative to the surface using slow, steady manual force. Pulling perpendicularly (90 degrees) increases tensile strain on freshly deposited plating margins.

• Adhesive Residue Verification: Inspect boundaries under high-intensity lighting or magnification. If minor adhesive tracks remain due to extended bath dwell times, wipe the area with isopropyl alcohol (IPA) or a non-corrosive aliphatic solvent cleaner.

• Edge Sharpness & Deposit Line Integrity: Evaluate transition zones for flash plating, feathering, or undercutting. A crisp, straight deposit line confirms optimal adhesive contact and mechanical edge sealing.

Technical FAQs

Q1: How does PVC electroplating protection tape prevent bath contamination?
A1: High-grade PVC tapes utilize chemically inert, non-corrosive cross-linked rubber adhesives that do not dissolve, leach, or react in acidic or alkaline baths. This prevents organic compounds from leaching into the electrolyte, preserving chemical balance and plating quality.

Q2: What causes plating solution to seep under the tape during processing?
A2: Seepage typically stems from insufficient surface cleaning, inadequate edge burnishing pressure, air entrapment, or over-stretching the tape during application. Over-stretching induces elastic recovery inside warm baths, causing edges to lift and pull away from the substrate.

Q3: Why choose soft PVC tape over PET tape for masking complex shapes?
A3: Soft PVC offers superior elongation (~100%) and mechanical conformability compared to PET films. It easily molds around 3D contours, step-downs, keyways, and sharp curves without tenting or leave void spaces underneath the adhesive layer.

Q4: What is the maximum safe operating temperature for PVC electroplating tape?
A4: PVC electroplating tapes perform reliably in continuous immersion operating temperatures up to 80°C to 90°C (176°F to 194°F). For processes exceeding 100°C, alternative backings such as PET or Polyimide are recommended.

Q5: Can electroplating tape be reused after removal?
A5: No. Electroplating tape is designed for single-use applications. Removing the tape alters adhesive distribution, reduces tack, stretches the backing polymer, and introduces chemical contaminants, making reapplication unsafe for production quality.
