Sourcing master rolls for pressure-sensitive packaging tape requires a clear grasp of film mechanics, polymer coatings, and slitting equipment capabilities. A single quality variance in a base roll can cause web breaks, blade gumming, and uneven winding on high-speed slitter rewinders.

For tape converters, packaging distributors, and industrial suppliers, purchasing a bopp tape jumbo roll directly from a primary manufacturer provides full control over unit costs, adhesive formulations, and inventory flexibility. This guide breaks down the essential technical parameters you need to evaluate before placing your next bulk order.

1. Introduction: What is a BOPP Tape Jumbo Roll & Who Needs It?

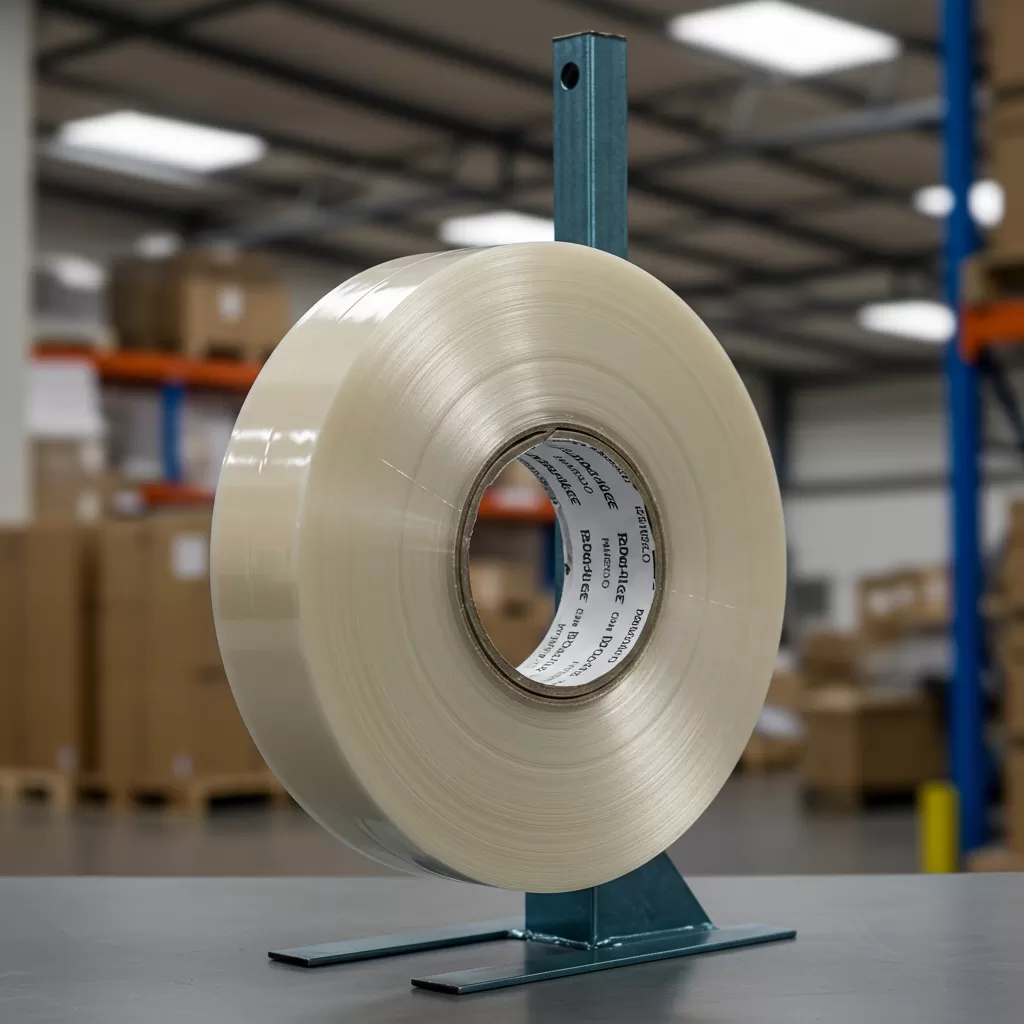

A BOPP jumbo roll is a large, continuous master roll of biaxially oriented polypropylene film that has been corona-treated and coated with a pressure-sensitive adhesive. These large parent rolls serve as the primary raw material for tape converting facilities worldwide.

Instead of importing finished carton sealing tapes in standard 48mm or 72mm widths, converters import jumbo rolls to slit and rewind them locally into specific lengths and branded packaging. This operational model delivers distinct commercial advantages:

• Lower Freight Costs: Shipping dense, solid jumbo rolls maximizes container payload weight, eliminating the dead space that comes with shipping boxed finished rolls.

• Inventory Agility: Maintaining master roll inventory lets you respond instantly to custom customer orders for non-standard widths, metric lengths, or private label cores.

• Higher Profit Margins: Converting in-house captures the manufacturing margin typically retained by downstream packaging processors.

Whether you operate a single manual lathe slitter or multi-spindle automatic turret rewinding lines, sourcing consistent master rolls from verified manufacturers like Youyi Group ensures steady production run times and minimal machine downtime.

2. Demystifying Tape Thickness: How Micron (µm) Affects Performance

Tape thickness is measured in microns (µm), where 1 micron equals 1/1000th of a millimeter (or roughly 0.039 mils). Total tape thickness directly determines tensile strength, elongation limits, and box-holding capacity.

Total thickness always consists of two distinct components:

Total Thickness = BOPP Base Film Gauge + Dry Adhesive Coating Thickness

Selecting the right balance between film backing and adhesive mass prevents common application failures such as tape snapping, edge tearing, or adhesive pop-off on corrugated board.

BOPP Film Micron Thickness Guide

The 45µm to 50µm range accounts for the highest global purchasing volume. It offers the ideal balance of tensile strength for mechanical case tapers and enough adhesive mass to grab porous kraft fibers.

Consistent gauge control across the entire web is vital. Reliable producers use automated radiometric beta-gauge sensors on the coating line to keep thickness tolerances within ±1µm. This tight tolerance stops gauge bands from forming ridges on the master roll.

3. The Chemistry of Adhesion: Water-Based Acrylic vs. Other Adhesives

Most commercial carton sealing rolls use water-based acrylic pressure-sensitive adhesive. Emulsion polymerization creates an eco-friendly adhesive system that resists aging, UV exposure, and oxidation better than solvent or rubber alternatives.

When reviewing technical data sheets for a water based acrylic adhesive jumbo roll, three primary mechanical metrics determine actual bonding performance on corrugated cartons:

• Initial Tack (Rolling Ball Method): Measures how fast the adhesive wets out and grabs a surface under near-zero pressure. High initial tack helps hand-dispenser applications on standard kraft liners.

• Peel Adhesion (180° Steel Plate Test): The force needed to peel the tape from a stainless steel test panel. It reflects the molecular bond between the adhesive polymer and the substrate.

• Holding Power (Shear Adhesion): Measures the adhesive's internal cohesive strength under constant downward shear stress. High shear holding prevents carton flaps from popping open during extended transit.

Recycled corrugated cartons contain shorter wood fibers, mineral fillers, and residual waxes, making them harder to seal than virgin kraft board. To guarantee a fiber-tearing bond on recycled board, buyers should specify a thicker adhesive layer (at least 20µm to 24µm of dry glue mass).

Youyi synthesizes high-molecular-weight acrylic polymer emulsions in-house. This gives you optical clarity without cloudy patches, low odor, and strong thermal stability from -5°C up to 60°C.

4. Custom Sizing & Specifications: Sourcing for Your Slitting Machine

Ordering the correct bopp packing tape jumbo roll specifications maximizes your slitting yields and minimizes web trim waste.

Master Roll Widths

The usable width must match your machine setup and target finished roll widths (typically 48mm or 72mm). Standard master roll widths include:

• 1280mm (Usable: 1260mm): Yields 26 finished cuts of 48mm tape with 12mm of total edge trim.

• 1610mm / 1620mm (Usable: 1584mm - 1600mm): Yields 33 finished cuts of 48mm tape. This is the global converter standard for high-output slitting.

• Custom Slit Widths: Custom width bopp jumbo roll for slitting can be trimmed directly at the factory to fit older or non-standard slitting equipment.

Winding Lengths

Standard continuous master roll lengths range from 4,000 meters to 6,000 meters. High-capacity operations often specify 8,000-meter rolls. Longer roll lengths reduce the downtime spent changing parent rolls, threading the web, and splicing films, which directly increases daily throughput.

Core Specifications

Industrial jumbo rolls come wound on heavy-duty 3-inch (76mm) internal diameter paper cores. These cores must feature thick walls (typically 10mm to 12mm) to withstand rewinding tension without crushing during transit or chuck slippage on unwind stands.

Aesthetic and Visual Options

• Clear / Transparent: Standard optical clarity for general packaging.

• Tan / Buff / Brown: Matches kraft box colors for a clean corrugated look.

• Crystal Clear: Uses specialized degassed adhesive for glass-like clarity on premium packaging.

• Solid Colors: White, red, blue, green, and yellow rolls for inventory coding, safety sealing, and custom printing bases.

5. Quality Red Flags: How to Avoid Subpar Jumbo Rolls

Low-grade master rolls lead to blade jamming, broken webs, and rejected shipments. Watch for these common defects during factory audits or when testing initial sample rolls:

• Fish Eyes and Gel Specks: Unmelted polypropylene resin or adhesive lumps that cause clear blemishes and localized weak spots on the film.

• Coating Streaks (Die Lines): Longitudinal lines across the roll caused by dried glue particles in the coating blade. These lead to uneven adhesive coverage.

• Edge Bleeding and Glue Oozing: Poorly cured adhesive that migrates to the roll edges. This makes the master roll stick to its packaging and causes tension spikes during unwinding.

• Telescoping and Soft Edges: Uneven tension control during primary winding. This creates rolls that cone outward, wander laterally on the slitter, and cause wrinkles in finished tapes.

Reliable manufacturers use multi-stage inline visual inspection cameras, high-precision reverse-roll gravure or slot-die coaters, and automated tension feedback systems to keep each roll uniform from the outer wrap down to the core.

6. Why Global Converters Partner with Youyi Group

Sourcing master rolls directly from a vertically integrated manufacturer removes intermediary markups and guarantees lot-to-lot consistency. As a leading BOPP tape manufacturer Youyi Group has refined high-volume film extrusion and precision coating for over thirty years.

• Fully Integrated Production: Established in 1986, Youyi operates a fully integrated manufacturing chain that spans polypropylene granule processing, biaxial film stretching, paper core manufacturing, adhesive polymer synthesis, and high-speed coating.

• Massive Production Scale: With 20+ modern production facilities and over 200 high-speed coating lines, Youyi provides steady supply capacity and rapid container turnaround times for overseas ports.

• Tight Thickness and Tension Control: Precision coating lines equipped with continuous online beta-gauge monitoring keep film and glue distribution consistent across the web.

• Custom Formulations: We tailor adhesive mass, peel strength, shear properties, and seasonal formulations to perform reliably in both sub-zero cold rooms and hot, humid tropical climates.

7. Frequently Asked Questions (FAQs)

Q1: What is the standard shelf life of a BOPP tape jumbo roll, and how should it be stored?
A1: When stored between 15°C and 25°C with relative humidity at 40-60%, high-grade water-based acrylic jumbo rolls maintain their performance for 12 to 18 months. Always store rolls vertically on end, resting on clean wooden pallets with core plugs. Keep them away from direct sunlight, moisture, and localized heat sources.

Q2: How many tons or rolls of BOPP jumbo rolls fit inside a 40-foot High Cube (40HQ) container?
A2: A standard 40HQ container holds approximately 44 to 48 standard jumbo rolls (such as 1280mm × 4000m or 1620mm × 4000m), packed vertically on pallets with heavy corrugated protection. Total net cargo weight typically ranges from 21 to 25 metric tons, depending on individual port road-weight regulations.

Q3: Can adhesive formulas be customized for extreme weather conditions?
A3: Yes. Standard acrylic emulsions perform well in moderate climates, but freezing cold chain logistics or hot, humid tropical transit call for adjusted chemical formulations. Youyi customizes glass transition temperatures (Tg), tackifiers, and monomer ratios to prevent cold shock crystallization or heat-induced adhesive softening.

Q4: What causes tape to break repeatedly on high-speed slitting machines?
A4: Slitting line breakage usually comes from low machine-direction (MD) film tensile strength, micro-fractures along uneven master roll edges, or high gauge variation that creates uneven tension across the slitting knives. Using master rolls made with virgin BOPP resin and precise corona treatment significantly reduces web snaps.

Q5: Can jumbo rolls be ordered with customized print release coatings for inline printing?
A5: Yes. We supply printable jumbo rolls treated with a dedicated release-coated backing. This lets converters run flexographic single-color or multi-color surface printing directly during the slitting process without requiring a separate release agent treatment.

8. Maximize Your Converting Yield with High-Grade Jumbo Rolls

Your slitting lines are only as productive as the master rolls feeding them. Sourcing flat, well-tensioned rolls with consistent adhesive coat weights minimizes setup waste, protects your slitter blades, and guarantees finished packaging tapes that stick reliably to all carton grades.

Youyi supplies converters and packaging distributors worldwide with high-grade master rolls engineered to run smoothly on all slitting setups. Contact our B2B technical sales team today to request a direct factory quotation, custom width specifications, or a trial sample roll for your production lines.
