Logistics and supply chain operations require secure carton sealing and accurate labeling to prevent transit delays and inventory discrepancies. Standard plastic adhesive tapes often present challenges when warehouse personnel need to apply manual markings, routing codes, or handling instructions directly onto the packaging material. To resolve this issue, writable kraft tape has emerged as a practical alternative that combines the mechanical strength of paper-based packaging with the utility of a dry, receptive writing surface. Youyi manufactures and supplies these specialized tape solutions to help enterprises standardize their sorting, shipping, and storage workflows.
By moving away from film-based alternatives, companies can integrate sealing and marking into a single step. This integration reduces reliance on multiple labeling materials and minimizes the labor hours spent on prep work. Understanding the material science, operational benefits, and application scenarios of this paper tape is necessary for procurement managers seeking to refine their packaging workflows.
Material Composition and Structural Properties of Writable Kraft Tape
To understand why writable kraft tape performs reliably in high-volume distribution environments, it is necessary to examine its physical structure. The performance of this packaging material is determined by three main components: the paper substrate, the surface release coating, and the adhesive formulation.
The Kraft Paper Substrate
The foundation of the tape is high-density kraft paper, typically manufactured using the sulfate pulping process. This chemical method preserves the natural length and strength of the wood fibers, resulting in superior tensile strength and puncture resistance compared to standard paper. The basis weight of the paper is carefully calibrated to ensure it can withstand the mechanical stresses of transit while remaining pliable enough to conform to irregular carton edges and seams.
The Ink-Receptive Surface Coating
Standard adhesive tapes utilize a silicone-based release coat on the non-adhesive side to allow smooth unwinding from the roll. However, silicone is highly hydrophobic and repels water-based and solvent-based inks, causing writing to bead up or smudge. Writable kraft tape features a modified, silicone-free release agent. This coating provides the necessary release force for unwinding while maintaining a high surface energy. This high surface energy allows permanent markers, ballpoint pens, and industrial stamping inks to wet the surface and dry rapidly without smudging.
Adhesive Formulation Options
The performance of the tape under varying temperature and humidity levels depends heavily on the adhesive system applied to the backing. Manufacturers generally utilize one of three primary adhesive formulations:
Natural Rubber Adhesive: Offers immediate tack and high shear resistance. It performs exceptionally well across a wide temperature spectrum, making it suitable for cold storage and deep-freeze packaging applications.
Hot-Melt Adhesive: Composed of synthetic rubbers and tackifying resins, this adhesive provides a strong initial bond to recycled corrugated fibers, making it ideal for high-speed automated carton sealing lines.
Solvent Acrylic Adhesive: Provides excellent UV resistance and long-term aging stability, ensuring the adhesive bond does not degrade when exposed to sunlight or prolonged storage.
Addressing Industrial Sealing and Identification Challenges
In large-scale distribution centers, manual labeling represents a recurring operational bottleneck. Standard practices often involve sealing cartons with clear BOPP tape and then applying a separate paper label or document pouch. This dual-step process increases material consumption and labor costs. Furthermore, printed paper labels can peel off during transit due to abrasion or moisture, leading to lost packages and identification failures.

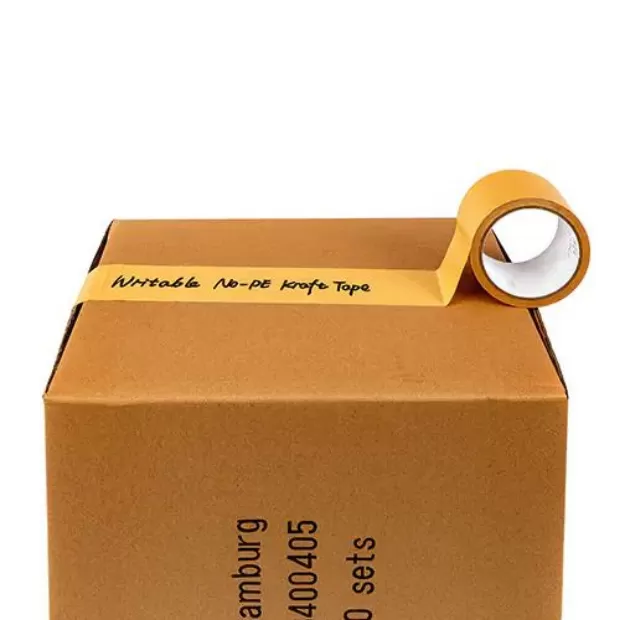

Implementing writable kraft tape allows shipping departments to bypass the need for secondary labels. Workers can seal a box and write shipping codes, batch numbers, or quality control statuses directly onto the tape. Youyi designs these tape surfaces to resist ink bleeding, ensuring that handwritten tracking data remains legible throughout the transit cycle. This reduction in packaging steps directly mitigates common shipping errors caused by detached adhesive labels.
Another common issue is the high cost of stocking customized pre-printed tapes for different product lines or hazard classes. Warehouses can instead stock standard rolls of writable paper tape, allowing operators to write or stamp specific warnings and codes as needed. This flexibility reduces inventory carrying costs and simplifies procurement schedules.
Comparative Performance Matrix
To assist packaging engineers in selecting the correct material, the following table compares the performance characteristics of writable kraft tape with standard plastic tape and water-activated tape.
| Performance Parameter | Writable Kraft Tape | Standard BOPP Tape | Water-Activated Tape (Gummed) | |
|---|---|---|---|---|
| Surface Writability | High (Accepts markers, pens, and stamps without smudging) | Very Low (Inks bead up and smudge easily) | Moderate (Accepts ink, but surface can be uneven) | |
| Application Method | Pressure-sensitive; applied manually or via machine | Pressure-sensitive; applied manually or via machine | Requires water activation dispenser equipment | |
| Tamper Evidence | High (Fibers tear upon removal attempts) | Low (Can sometimes be peeled and reapplied) | Excellent (Creates a permanent molecular bond) | |
| Recycling Compatibility | High (Can be recycled directly with corrugated boxes) | Low (Must be separated during the pulping process) | High (Fully recyclable with paper board) | |
| Initial Tack | Immediate (No drying or wetting time required) | Immediate (Requires firm pressure) | Delayed (Requires several seconds to dry and cure) |
Strategic Industrial Application Scenarios
The utility of writable kraft tape extends across various sectors of the manufacturing, packaging, and supply chain network, where identification and secure sealing must occur simultaneously.
Quality Control and Inspection Sealing
Quality assurance teams frequently inspect finished goods before shipment. Once a carton is approved, the inspector can seal the box using the paper tape and write the inspection date, inspector ID, and batch number directly across the seam. This creates a secure, signed seal that cannot be peeled off and replaced without leaving clear evidence of tampering, protecting the integrity of the quality control process.
E-Commerce Fulfillment and Custom Order Notes
In regional fulfillment hubs, workers often handle custom orders requiring specialized picking and packing. Using write-on paper tape allows packers to write personalized handling notes, itemized checklists, or specific assembly instructions directly on the exterior of the shipping container. This eliminates the need for packing slips inside the box and speeds up the receiving process for the end customer.
Hazardous Materials and Compliance Marking
Shipping chemical products or batteries requires adherence to strict safety standards. Standard warning labels can occasionally detach in damp shipping container environments. Writing regulatory classifications, handling notes, or safety warnings directly onto the sealing tape ensures that instructions remain attached to the package structure. Youyi ensures that the paper base maintains high contrast, making handwritten safety notes easy to read for cargo handlers.
Cold Storage and Frozen Food Logistics
Cold chain packaging requires adhesives that can survive freezing temperatures without crystallizing. Natural rubber-based paper tapes provide the immediate adhesion required for cold storage cartons. Logistics personnel can write date codes, expiration details, or temperature limits directly on the tape surface, knowing the writing will not fade or run when exposed to condensation during transfer phases.
Environmental Alignment and Circular Economy Compatibility
Regulatory frameworks globally are increasing pressure on manufacturers to reduce plastic waste in packaging. Standard plastic tapes pose a challenge during the paper recycling process. In recycling mills, plastic films do not dissolve; they must be mechanically screened out as "stickies," which can clog machinery and degrade the quality of the recycled paper pulp.
Because the carrier material of writable kraft tape is wood pulp, it is highly compatible with industrial paper recycling equipment. When corrugated boxes are processed, the paper fibers of the tape dissolve alongside the containerboard. Modern bio-based or water-dispersible adhesives further simplify this process by breaking down completely during the hydrapulping stage. Choosing paper-based sealing products helps industrial packers align their operations with zero-waste goals and circular economy standards.
Sourcing Parameters for B2B Procurement Professionals
When selecting a supplier for industrial packaging materials, procurement managers must evaluate several performance metrics to ensure compatibility with existing packaging systems and transit demands.
Tensile Strength (N/25mm): Determines the maximum weight the tape can secure. High-weight cartons require paper tape with a higher tensile rating to prevent tearing along the box flaps under load.
Peel Adhesion (N/25mm): Measures the force required to peel the tape from a stainless steel plate or cardboard surface. Adequate adhesion ensures the tape will not lift at the edges during transport.
Roll Dimensions: Standard commercial widths include 48mm and 72mm. Roll lengths can vary from 50 meters for handheld tape dispensers to 500 meters or more for automated carton sealing machines.
Storage Conditions and Shelf Life: To maintain optimal adhesive performance, paper tapes should be stored in a dry environment between 15°C and 25°C, away from direct sunlight. Under these conditions, the shelf life typically extends to 12 months.
Youyi maintains strict quality control standards throughout the manufacturing process, from raw pulp selection to adhesive coating weight consistency. This focus on material uniformity ensures that each batch of tape performs reliably on high-speed automated packaging lines and manual packing stations alike.
Frequently Asked Questions
Q1: Can writable kraft tape be used with standard hand-held tape dispensers?
A1: Yes, this tape is designed for easy manual application. It can be used with standard hand-held tape guns and desktop dispensers, and it can also be torn by hand for quick packaging workflows without requiring cutting tools.
Q2: What types of pens or markers are recommended for writing on this tape?
A2: The surface formulation is designed to work with permanent felt-tip markers, ballpoint pens, and industrial stamping inks. Water-based gel pens may require a few additional seconds to dry fully compared to solvent-based permanent markers.
Q3: Is the adhesive backing solvent-free?
A3: Yes, Youyi offers hot-melt and water-dispersible adhesive options that are free from volatile organic solvents, aligning with modern corporate environmental policies and workplace safety standards.
Q4: How does this product perform on recycled corrugated cardboard?
A4: Recycled cardboard often has shorter fibers and a dustier surface than virgin cardboard, which can make adhesion difficult. The high initial tack of our paper tape formulations allows the adhesive to penetrate these short fibers, securing a strong bond.
Q5: Can this tape withstand humid tropical shipping conditions?
A5: Yes, the combination of high-grade kraft backing and moisture-resistant adhesives ensures that the tape maintains its seal and structural strength even when exposed to high humidity during ocean freight transit.
Q6: Does this tape require water to activate the adhesive?
A6: No, this is a pressure-sensitive tape. Unlike water-activated gummed tape, it does not require water dispensers or wetting systems. It adheres immediately upon contact with the cardboard surface under light manual pressure.
Connect with Our Engineering Team
Developing an efficient, sustainable, and reliable packaging process requires materials tailored to your specific logistics and storage environments. Youyi provides bulk manufacturing, custom slitting, and specialized adhesive coating configurations for industrial packaging tape lines globally. To discuss your physical testing requirements, obtain product samples, or request a commercial quotation for your operations, please contact our sales engineering department with your specific project parameters.
