Industrial tape converters and distributors require consistent raw materials to maintain high-speed production lines and reduce material waste. The washi tape jumbo roll serves as the primary master format from which retail-ready decorative tapes, high-precision automotive masking tapes, and specialized industrial packaging tapes are produced. Maintaining dimensional stability, adhesive uniformity, and tensile strength across a master roll measuring over a meter in width and thousands of meters in length presents a complex manufacturing challenge.
For B2B buyers, evaluating a washi tape jumbo roll involves looking beyond basic price-per-square-meter metrics. It requires an inspection of substrate physics, adhesive chemistry, and winding mechanics. When primary manufacturers like Youyi control these variables, downstream slitting operations run with minimal downtime, clean edge cuts, and consistent unwind tension. This analysis examines the variables that determine roll performance during high-speed conversion.
The Structural Architecture of Washi Paper Backings
The performance of any finished masking tape depends heavily on its carrier material. Traditional masking tapes utilize crepe paper, which offers high elongation but lacks the ultra-thin profile needed for sharp paint lines. Washi paper, historically crafted from natural fibers like mulberry or gampi, utilizes long, interlocking fibers that provide high tensile strength relative to its thickness. Modern industrial washi papers blend these natural fibers with synthetic wood pulp and reinforcing polymers to withstand the mechanical stresses of high-speed coating and converting lines.
This fiber arrangement yields a backing material that is thin, conformable, and tear-resistant. The mechanical properties of the backing paper must be balanced across two dimensions:
Machine Direction (MD) Tensile Strength: Prevents breaking during high-speed unwinding, adhesive coating, oven drying, and subsequent slitting.
Cross Direction (CD) Tensile Strength: Ensures the tape resists splitting when pulled around complex contours or uneven surfaces during application.
The paper must also undergo a precise saturation process. Untreated paper is highly porous, meaning it would absorb adhesive during the coating process and allow solvents or water to bleed through during paint applications. Manufacturers impregnate the paper backing with specialized synthetic resins. This saturation step seals the pores, stabilizes the fibers, and establishes a balanced barrier that controls adhesive penetration while preserving the flexibility of the tape.
Adhesive Formulation and Release Coat Chemistry
A washi tape jumbo roll relies on a delicate chemical balance between three distinct layers: the release coat on the back of the paper, the saturated paper carrier, and the pressure-sensitive adhesive (PSA) layer on the front. If any of these components fail to bond or release correctly, the entire roll can suffer from telescoping, adhesive transfer, or tearing during unwind.
Pressure-Sensitive Adhesive Systems
The choice of adhesive chemistry dictates the thermal, chemical, and mechanical limits of the tape. Three primary adhesive systems are commonly coated onto the master rolls:
Water-Based Acrylic: Known for UV resistance and long-term aging stability. This system is widely used for decorative stationery and general masking because it resists yellowing and adhesive degradation.
Solvent-Based Acrylic: Delivers superior temperature resistance and chemical shear strength. This formulation is preferred for automotive and industrial masking where the tape must withstand bake cycles up to 120°C or 150°C without leaving residue.
Synthetic or Natural Rubber: Offers high initial tack and excellent adhesion to low-energy surfaces. However, it exhibits lower resistance to UV exposure and thermal aging compared to acrylic formulations.
The Release Coat Mechanism
Because the tape is wound tightly upon itself in a large format, the adhesive layer directly contacts the backside of the paper backing. To ensure the tape can be unwound without delaminating or tearing, a release agent is applied to the non-adhesive side of the paper. This release coating—often a thin layer of silicone or carbamate polymer—must be applied with high uniformity.
If the release force is too high, the paper backing may tear or split during high-speed slitting. If the release force is too low, the roll may telescope during transport or unwind prematurely, causing wrinkles and alignment errors on the slitter-rewinder.
Winding Dynamics and Slitting Challenges in Jumbo Formats

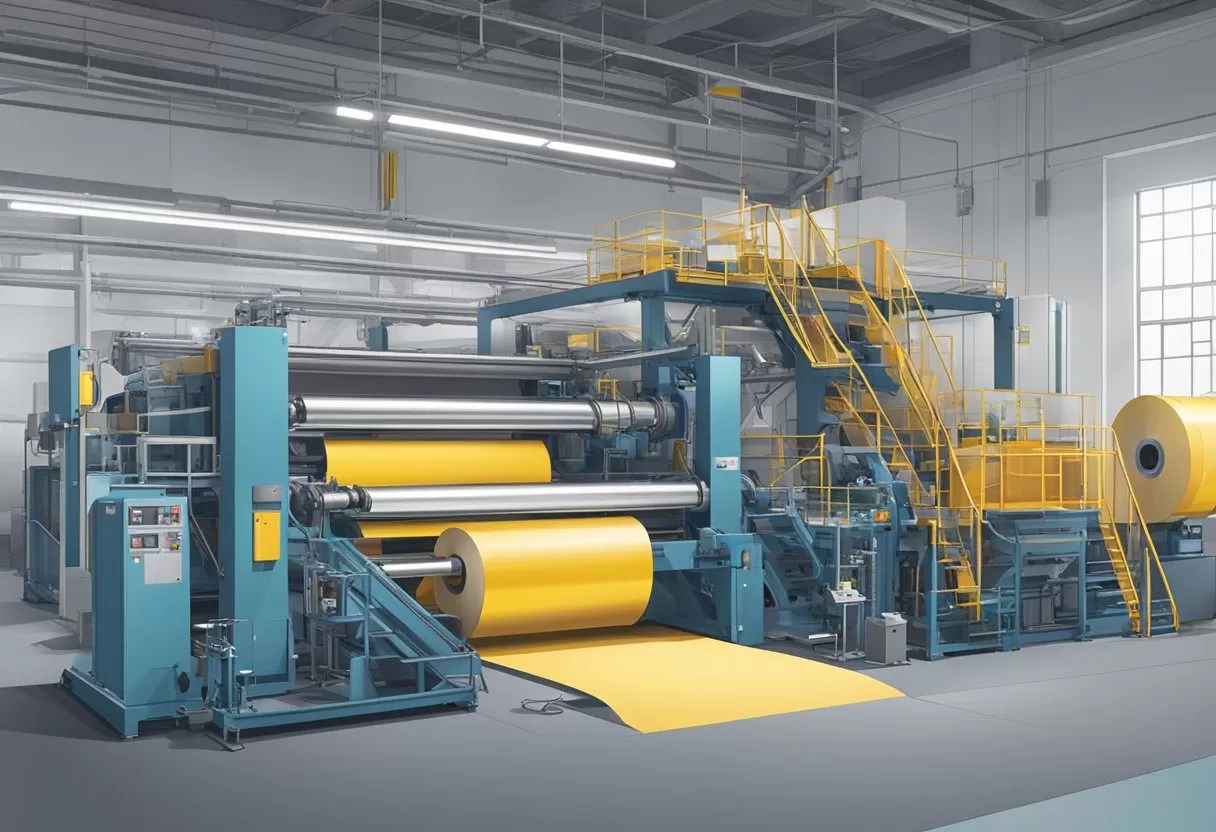

The physical preparation of a washi tape jumbo roll is a highly precise winding operation. As the master roll builds up to diameters often exceeding one meter, the internal forces within the roll increase. Improper management of these forces leads to common defect patterns that disrupt downstream converting.
Preventing Roll Deformation
During the winding process, winding tension must be continuously adjusted. If a constant tension is maintained from the core to the outer edge, the cumulative pressure of the outer layers will crush the inner layers. This pressure leads to core crushing, "starring" (where the circular profile of the roll deforms into a star-like shape), or telescoping (where the inner layers push outward laterally).
To prevent these issues, advanced winding systems employ a tapered tension profile. Winding tension is highest at the core and gradually decreases as the roll diameter increases. This ensures a uniform density throughout the master roll, allowing it to remain perfectly cylindrical during shipping, storage, and long-term handling.
The table below summarizes common winding and structural defects, their root causes, and the engineering solutions applied during manufacturing:
| Defect Mode | Root Cause | Manufacturing Solution |
|---|---|---|
| Telescoping | Excessive unwind tension or poor lateral alignment during master roll winding. | Implementing tapered tension control algorithms and precise web guiding systems. |
| Adhesive Transfer | Insufficient bonding between adhesive and backing, or incomplete curing. | Pre-treatment of paper via corona discharge and maintaining precise drying oven profiles. |
| Core Crushing | Excessive winding pressure on the inner layers of the jumbo roll. | Utilizing high-crush-strength phenolic or heavy-duty cardboard cores with tapered tension. |
| Edge Splitting | Micro-nicks along the edge of the paper backing caused during primary trimming. | Using ultra-sharp shear-cut slitting knives with continuous blade monitoring. |
Slitting Efficiency for Converters
When a converter mounts a washi tape jumbo roll onto a lathe slitter or a duplex slitter-rewinder, the consistency of the master roll directly impacts their yield. Variations in paper thickness (gauge variation) across the width of the roll can lead to uneven tension during rewinding. If one section of the master roll is slightly thicker, the slit rolls from that section will be wound tighter than those from thinner sections, leading to inconsistent finished product quality. Youyi addresses this by enforcing strict thickness tolerances across the entire web, keeping variation to within single-digit micrometers.
Evaluating Sourcing Variables for B2B Procurement
Sourcing large-format adhesive rolls requires careful verification of chemical, mechanical, and logistical parameters. Procurement managers must look past basic unit costs to ensure that the material specifications match their specific slitting machinery and target application environments.
Key parameters that must be evaluated during the sourcing process include:
Usable Width and Trim Waste: Master rolls are typically produced in widths such as 1020mm or 1260mm. Buyers must verify the exact "usable" width after edge-trimming to ensure maximum yield when slitting to standard retail widths like 15mm, 24mm, or 48mm.
Storage Stability and Shelf Life: Because jumbo rolls contain massive amounts of material, they are often stored for months before converting. The adhesive formulation must resist degradation, shear loss, and cohesive failure under variable temperature and humidity conditions.
Splice Frequency and Marking: A high-quality master roll should ideally be continuous. If splices are present, they must be clearly flagged and cleanly executed using high-strength splicing tape to prevent blade damage or line stoppage during downstream converting.
Working with a fully integrated manufacturer like Youyi ensures that these parameters are documented and maintained from batch to batch. This level of quality control reduces mechanical adjustments on the converter's slitting floor, allowing for higher run speeds and lower scrap rates.
Industrial Inquiry and Technical Collaboration
Selecting the appropriate adhesive chemistry, paper weight, and roll dimensions is essential for establishing an efficient, high-yield slitting process. If your converting facility requires specific adhesion values, custom roll widths, or tailored temperature resistance profiles, our engineering team can provide detailed material data sheets, physical samples, and custom coating configurations.
Contact our B2B sales division to submit an inquiry regarding our current manufacturing capabilities, minimum order quantities for custom coat weights, and volume-based pricing structures for master rolls.
Frequently Asked Questions
Q1: What is the standard usable width and length of a typical washi tape jumbo roll?
A1: Standard usable widths typically range from 1020mm to 1260mm, depending on the coating line configuration. The roll lengths can be customized based on converter requirements, commonly ranging from 1000 meters to 3000 meters, balanced to fit the unwind capacity of standard slitting-rewinding machinery.
Q2: How does temperature affect the storage and processing of these large-format rolls?
A2: Storage in environments exceeding 30°C or 60% relative humidity can accelerate adhesive degradation, leading to adhesive migration or increased unwind force. It is best to store the rolls in a climate-controlled warehouse at approximately 20°C to 23°C and 50% relative humidity, allowing the rolls to acclimate to processing room temperatures before slitting.
Q3: Can water-based acrylic adhesives perform as well as solvent-based adhesives for industrial masking?
A3: Water-based acrylics offer excellent UV stability and are highly suited for decorative and light-duty masking. However, for high-temperature automotive bake cycles or exposure to harsh chemical solvents, solvent-based acrylic or synthetic rubber adhesives are preferred due to their superior cross-linking density and resistance to thermal shear.
Q4: Why does edge splitting occur during the slitting process, and how can it be prevented?
A4: Edge splitting often occurs if the slitting blades are dull, misaligned, or if the paper backing has micro-tears along its edges. Using sharp, high-quality circular shear blades and maintaining correct blade-to-anvil pressure helps ensure clean cuts, while using a master roll with high cross-direction tensile strength minimizes the propagation of micro-tears.
Q5: What are the primary indicators of uneven winding tension in a master roll?
A5: The primary indicators include soft spots on the roll face, starring of the outer layers, or lateral shifting of the paper layers (telescoping) during transport. These indicators point to a failure in the tension control system during the winding phase, emphasizing the need for tapered tension profiling during manufacturing.
